Talking device UT-40 (UT-80)

Destination

Mechanical talcum powder is designed to apply talcum powder to an insulated core.

The device consists of a rack, a talc hopper, two augers for mixing and one auger for talc return.

The principle of operation is based on mixing talc with two screws and removing excess talc with brushes.

Technical characteristics of UT-40

Maximum cable diameter, mm	up to 35
Through hole diameter, mm	40
Line speed, m/min	max 100

UT-80 specifications

Maximum cable diameter, mm	up to 75
Through hole diameter, mm	80
Line speed, m/min	max 100

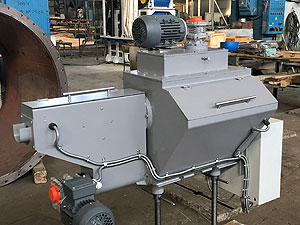

Photos

Video of applying talc to wire
