Installation of rewinding of steel tapes UPSL-8
UPSL-8 is designed to rewind rolls of steel tapes for installation on armored vehicles in technological lines of cable production.
Specifications
| Belt material | steel |
| Belt thickness | 0.2-0.5mm |
| Belt width | 20-55mm |
| Max mug weight | 200 kg |
| Reel inner diameter at unwind | 76; 175; 270 mm |
| Reel inner diameter | 76; 175; 270 mm |
| Reel outside diameter when wound up | 790 mm |
| Shaft arrangement | horizontal |
| Number of shafts | 2 |
| Payback brake type | friction/belt |
| Belt tension | adjustable |
| Winding speed | 10-130 rpm |
| Rewind speed adjustment | smooth |
| Type of winding faceplate drive | ac/gear motor |
| Drive power | 1.5 kW |
| Connecting the unit to the mains | via an industrial power connector |
Hardware specifications
- the design of the giving and receiving faceplate should provide the ability to remove the wound circle using a hoist;
- the design of the machine should provide for the possibility of ensuring the tension of the tape using a system of rollers;
- nozzles must be able to be dismantled after rewinding the tape;
- the machine must ensure smooth winding. The accuracy of winding the end of the circle should be no more than + 1.0 mm along the entire length and no more than 0.5 mm of individual turns of the tape;
- the constructive placement of the machine elements should ensure the possibility of welding the mug tape at the end of the wound mug.

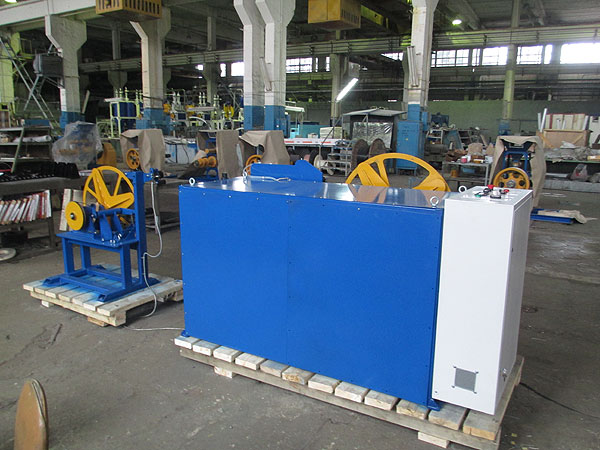

Photos
