Winding machine MO-3

The MO-3 winding machine is designed for winding wires with a diameter of 0.32 to 2.1 mm with a film of the SKLF-4D, F-4, PMF, etc. types with a given tension (the first and third winders - SKLF- 4D, F-4; middle wrapper - PMF).

Machine composition

• Dispenser with mechanical strain relief - 1 pc
• Wrapper head drive - 3 pcs
• Wrapper head - 3 pcs
• Traction device - 1 pc.
• Receiving device with a drive - 1 pc.
• Temperature maintenance system - 1 pc.
• Control system - 1 pc.
• Frame - 1 pc.

Specifications

Machine output, m/min	2.3…25.7
Number of wrappers, pcs	3
Wrapper rotation speed, rpm	920 (max up to 1000)
Wrapper rotation direction	reverse
Diameter of wrapped cores, mm	0.32…2.1
Diameter of the central hole in the winder for passing the wire, mm	7
Tension, gr.	75 to 2000
Wrapping pitches, mm	1...28
The winding pitch is set from the operator panel
Discrete setting of winding pitch, mm	0,1
Temperature in the insulation zone, 0С	15+5 *
Installed capacity of the temperature maintenance unit, kW	2.7
Acceleration time to operating speed, s	10
Machine emergency stop time, s, max	3
Wrapper speed in filling mode, min-1	25-30
Ribbon ejector:
tape width, mm	3…20
circle outer diameter, mm	200
inner ring diameter, mm	75
tape thickness, µm	20…100
Tape tension, gr. on wrappers:
#1	40 to 250
#2	300 to 3500
#3	40 to 250
Tape tension fluctuation during wrapping	no more than 8%
Dim coil dimensions:
cheek diameter, mm	200-250
tummy diameter, mm	125-160
hole diameter, mm	22; 36
hole shape	taper 600
outer coil width, mm	200
Take-up coil dimensions:
cheek diameter, mm	250-500
tummy diameter, mm	160-190
hole diameter, mm	36; 60
hole shape	taper 600
outer coil width, mm	200-260
Traction wheel diameter, mm	318
Installed power of drives, kW	3,4**
Overall dimensions, indicative**:
length, mm	1 810
width, mm	960
height, mm	2 250
Mass, kg	1 050

^* This parameter is set considering that the maximum room temperature should not exceed 25°C.

^** Not including temperature maintenance system.

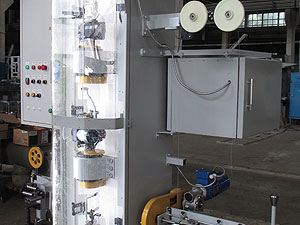

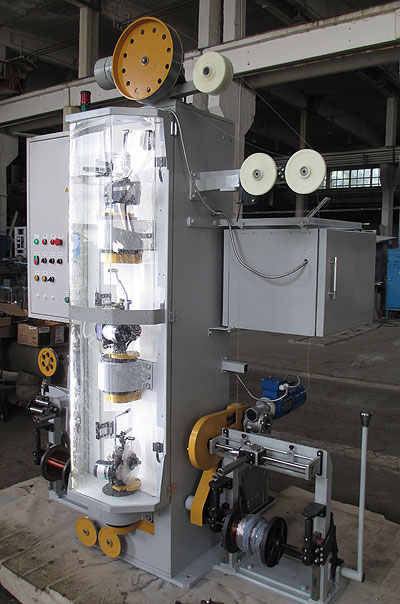

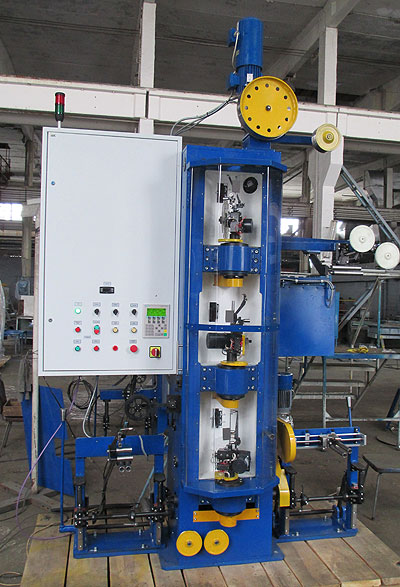

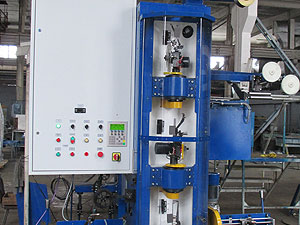

Photos
