Winding machine MO
The winding machine brand "MO" is designed for winding wire with a given tension.
The wire from the output coil, through the tension roller and the turning roller, enters the first winder, where the primary layer of insulation is applied. The wire then enters the second winder where a secondary layer of insulation is applied. After applying the secondary layer of insulation, the wire passes through a trowel, a swivel roller, a traction washer that imparts linear movement to the wire, and enters the receiving coil through the unfolding mechanism.
Specifications of the wrapping machine
| Machine output, m/min | 0.6…8 |
| Number of wrappers, pcs | 2 |
| Speed of rotation of wrappers, rpm | |
| first | 500 |
| second | 426…866 |
| Diameter of wrapped wires, mm | 0.18…2.0 |
| Tension, g | 0.7 to 20 |
| Tape take-off, mm | |
| ribbon width | 3…12 |
| Circle outside diameter | 160 |
| Ring inner diameter | 75 |
| tape thickness | 40…100 |
| Tape tension, g | 40 to 250 |
| Overall dimensions, mm | |
| length | 1900 |
| width | 600 |
| height | 1548 |
| Mass, kg | 785 |

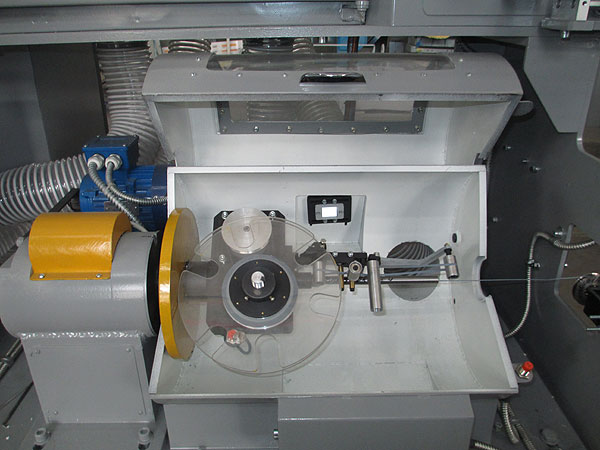

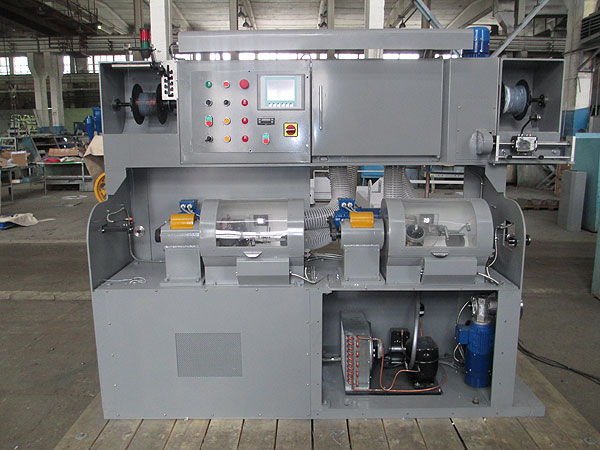

Photos of the wrapping machine
