Line for rewinding steel wire LPS-1250
The line is designed for rewinding galvanized steel wire.
Composition of the machine:
KOU-1250P active cantilever pay-off device - 1 pc.
Reinforced console receiving device with a spreader on a smooth shaft and a measuring wheel of the KPU-1250 brand - 1 pc.
Compensator with 9 rollers and pneumatic cylinder load - 1 pc.
Control system based on Siemens controller - 1 pc.
Tape wrapper specifications
| Type of product being rewound | solid wire |
| Wire diameter, mm | 1.3...6.5 |
| Wire material | aluminum, aluminum alloy, steel, aluminum clad steel wire |
| Linear operating speed, m/min: | |
| - when rewinding from drum 1250 to reel 630 (aluminum and aluminum alloy 1.3.. .4.5 mm (160..300 N/mm? mechanical tensile strength ), clad wire 1.8..3.0 (1400N/mm?) | 300 |
| - clad steel wire 4.0 ...6.5 mm (1600 N/mm?) | 200 |
| Wire rewind tension, N | 20.0...200.0 |
| Rewind pitch, mm/rev | 3.0 ... 30.0 |
| Tank Drum Dimensions | |
| - drum cheek diameter, mm | 630...1250 |
| - drum neck diameter, mm | 355...630 |
| - axial hole diameter, mm (cylindrical hole shape) | 80; 127 |
| - total drum width, mm | 475...950 |
| - wire drum weight, kg. max | 2000 |
| Discharge drum dimensions | |
| - drum cheek diameter, mm | 630...1250 |
| - drum neck diameter, mm | 475...630 |
| - axial hole diameter, mm (cylindrical hole shape) | 80; 127 |
| - total drum width, mm | 475...950 |
| - wire drum weight, kg. max | 3200 |

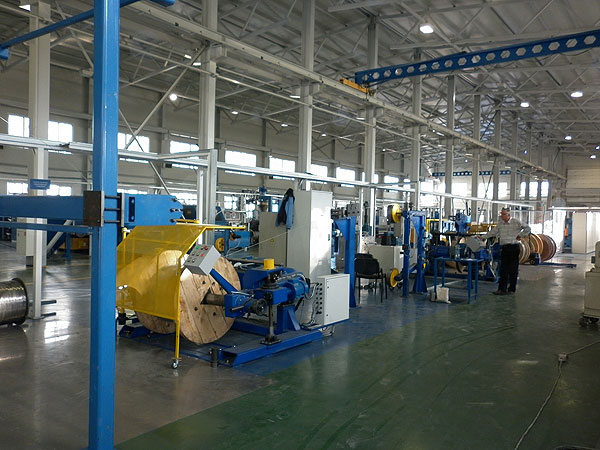

Photos
