Line LPKP-3.5-500 for rewinding and control of wires

The line is designed to control the insulation of wires with a cross section of up to 3.5 mm² and rewind them from the output coil to the receiver coil or coil.

Composition

1. The console donator is active. The spool is lifted by an electro-mechanical hoist. The clamping of the coil in the quills is carried out by a clamping quill with an electro-mechanical drive - 1 pc.
2. Compensator to control the speed and tension of the wire on the pay-off device - 1 pc.
3. Sonic dry test apparatus (ZASI), (Sikora) - 1 pc.
4. Length counter - 1 pc
5. Console receiver with spreader based on screw-nut transmission and servo drive. The spool is lifted by an electro-mechanical hoist. The clamping of the coil in the quills is carried out by a clamping quill with an electro-mechanical drive - 1 pc.
6. Electrical equipment based on the controller and operator panel (Siemens) - 1 pc.

Specifications

Wire insulation materials:
- polyethylene;
- PTFE;
- PVC compound.
Rewindable wire diameter, mm	from 0.3 to 3.5
Rewind speed: up to 200 m/min. The machine must work steadily over the entire speed range. Adjusting the speed mode: when working with ZASI, the speed of 100 m/min is set by the “constant speed” button. When working without ATIS, the speed varies from the foot pedal in the range up to 200 m/min.
Speed ??Accuracy, %	±0.5
Linear speed variation method	smooth
Test voltage, kV	from 0.5 to 15.0
The length of the electrode assembly, mm.	100
Wire rewind tension:
- matched on sender and receiver;
- from 3 to 50 N.
Dimensions of receiving-delivery containers, mm	500
Nesting spacing on receiving container, mm	from 0.25 to 3.7
The layout device must provide row layout. Layout pitch resolution, mm.	0,1

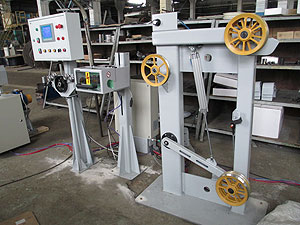

Photos
