Line LP-5-800-500 for rewinding cores, cable blanks and wire
The line is designed for rewinding the core, cable blank and wire from the output coil or from the coil (rosette) to coils with diameter control and checking for defects.
Composition
- Dispensing device for unwinding the rosette - 1 pc.
- The console donator is active. The spool is lifted by an electro-mechanical hoist. The clamping of the coil in the quills is carried out by a clamping quill with an electro-mechanical drive - 1 pc.
- Compensator to control the speed and tension of the wire on the pay-off device - 1 pc.
- Wire diameter gauge per pass with control of diameter deviation from the maximum allowable value (with digital and sound alarms, as well as recording results along the length) (Sikora) - 1 pc.
- Wire bundle detection and wire soldering device with alarm and immediate stop of rewinding (Sikora) - 1 pc
- Length counter - 1 pc
- Wipe - 1 pc.
- Console receiver with spreader based on screw-nut transmission and servo drive. The spool is lifted by an electromechanical hoist. The clamping of the coil in the quills is carried out by a clamping quill with an electro-mechanical drive - 1 pc.
- Electrical equipment based on the controller and operator panel (Siemens) - 1 pc.
Specifications
| Wire materials: | |
| - copper and copper alloys, as well as with tin, nickel and silver coating; | |
| - aluminum and aluminum alloys, as well as with tin coating; | |
| -steel and enameled conductors. | |
| Diameter of rewound cores, cable blanks and wires, mm | from 1 to 5 |
| Section of rewound cores, cable blanks and wires, mm2 | from 0.35 to 16 |
| Rewind speed: up to 200 m/min. The line must operate steadily over the entire speed range. | |
| Nesting spacing on receiving container, mm | from 0.7 to 5.1 |
| The layout device must provide row layout. The layout step resolution is 0.1 mm. |

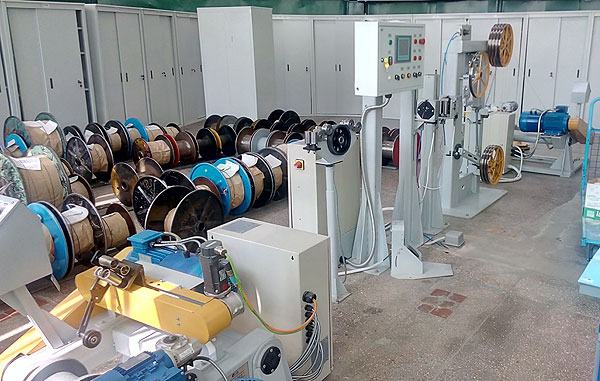

Photos
