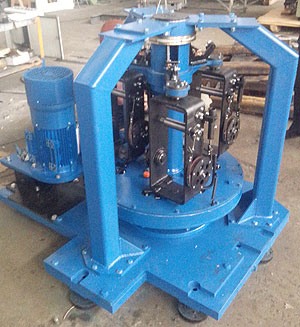

Torsion head GK3-270
The head is designed for twisting steel wire.
Technical specifications of the torsion head
| Machine type | lantern twisting machine with twist-off |
| Number of output coils | 3 |
| Twist direction | reverse (right or left) |
| Twist pitches, mm | from 10 to 150 |
| Number of revolutions of the lantern up to, rpm | 340* |
| Tension of the core on the output devices, kg | from 0.2 to 3.0 |
| Tension of the twisted workpiece, kg | from 0.3 to 10 |
| Blank parameters: | |
| Steel wires | soft (annealed) |
| Wire diameter, mm | 0.34 |
| Dispensing tare parameters: | |
| Metal coil with dimensions, mm: | |
| Cheek diameter | 270 |
| Tummy diameter | 82 |
| Axle diameter | 36 |
| Cheek spacing (internal) | 130 |
| Cheek spacing (outside) | 150 |
| Installed power, kW | 3.0 |
| Machine dimensions, mm: | |
| Length | 2720 |
| Width | 1300 |
| Height | 2000 |
| Machine weight, kg | 1200 |
* When twisting 2 wires, the number of revolutions of the lamp is not more than 100 min-1. It is recommended to install a load with a weight of 0.5 of the weight of the coil with wire in an empty cradle of the machine to avoid increased vibrations.
